Solution of Load Flow by Gauss Seidel method without Q-limit Violation in MATLAB | PSS LAB | EEE

PROBLEM: The system data for a load flow solution are given in the table. Determine the voltage at the end of first iteration by Gauss Seidel method.   Bus code Admittance Bus code P Q V Remark     1-2         2-j8        1        -        -     1.08      slack     1-3         1-j4        2      0.5      0.2       -        PQ     2-3     0.66-j2.6        3      0.4      0.3       -        PQ     2-4         1-j4       4      0.3      0.1       -        PQ     3-4         2-j8       -        -        -        -          -

Theoretical Calculation:

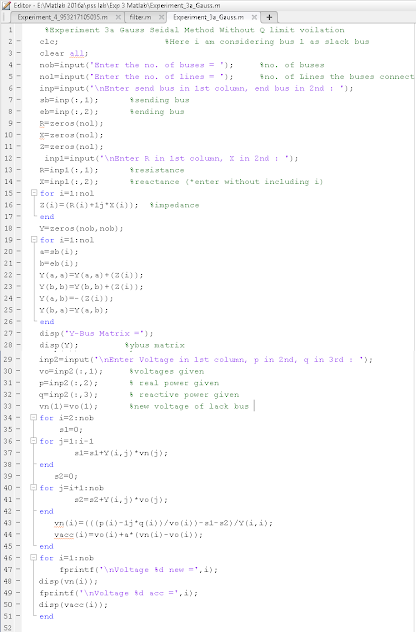

MATLAB Program :

clc;

clear all;

nob=input('Enter the no. of buses = ');

nol=input('Enter the no. of lines = ');

inp=input('\nEnter send bus in 1st column, end bus in 2nd : ');

sb=inp(:,1);      %sending bus

eb=inp(:,2);      %ending bus

R=zeros(nol);

X=zeros(nol);

Z=zeros(nol);

 inp1=input('\nEnter R in 1st column, X in 2nd : ');

R=inp1(:,1);

X=inp1(:,2);

for i=1:nol

Z(i)=(R(i)+1j*X(i));

end

Y=zeros(nob,nob);

for i=1:nol

a=sb(i);

b=eb(i);

Y(a,a)=Y(a,a)+(Z(i));

Y(b,b)=Y(b,b)+(Z(i));

Y(a,b)=-(Z(i));

Y(b,a)=Y(a,b);

end

disp('Y-Bus Matrix =');

disp(Y);

inp2=input('\nEnter Voltage in 1st column, p in 2nd, q in 3rd: ');

vo=inp2(:,1);

p=inp2(:,2);

q=inp2(:,3);

vn(1)=vo(1);

for i=2:nob

    s1=0;

for j=1:i-1

       s1=s1+Y(i,j)*vn(j);

end

   s2=0;

for j=i+1:nob

       s2=s2+Y(i,j)*vo(j);

end

   vn(i)=(((p(i)-1j*q(i))/vo(i))-s1-s2)/Y(i,i);

   vacc(i)=vo(i)+a*(vn(i)-vo(i));

end

for i=1:nob

    fprintf('\nVoltage %d new =',i);

disp(vn(i));

fprintf('\nVoltage %d acc =',i);

disp(vacc(i));

end

MATLAB Output:

YouTube Video of My Channel on the Problem you can use this also

Disclaimer:          In this video I missed Vacc  ( If you have any problem in doing this you can comment below  , I will help as soon as possible) 💗  Thanks For Visiting  💗
